Engineering Advantages of the 7mm Nylon Cable Carrier in Micro Automation |
|
In the realm of advanced micro-automation, medical robotics, and precision electronic manufacturing, managing dynamic utility lines within severely restricted spaces presents a constant engineering challenge. As motion control mechanisms become smaller, lighter, and faster, the protective systems guiding delicate power lines, sensor leads, and pneumatic micro-hoses must scale down accordingly. The high-performance micro cable carrier engineered with an internal clearance height of 7mm represents a benchmark solution. Below is a detailed look at the core structural and operational advantages of integrating a specialized drag chain 7mm carrier into low-profile motion setups. |
|
1. Ultra-Compact Profile for Restricted Enclosures |
|

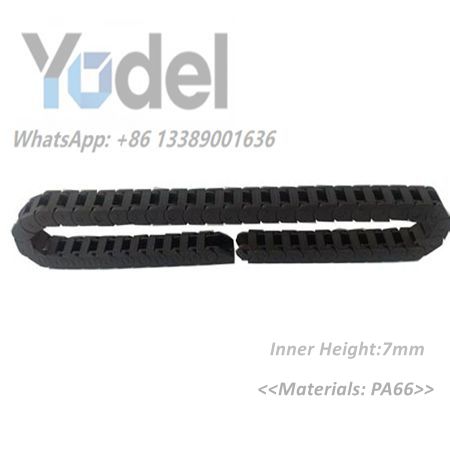

The defining structural feature of a 7mm drag chain is its extremely low dimensional footprint. Designed specifically for tight mounting cavities, this carrier provides an internal clearance height of exactly 7mm, allowing machine builders to downsize gantry profiles, robot arms, and equipment housings. By optimizing physical space without compromising dynamic line protection, engineers can develop sleeker, more compact automated machinery. |
|
2. High-Grade Reinforced PA66 Nylon Construction |
|
A high-quality drag chain 7mm system is constructed from premium grade reinforced polyamide (PA66 nylon). This advanced polymer provides an exceptional strength-to-weight ratio, high tensile rigidity, and dynamic fatigue resistance despite its micro dimensions. Key material advantages include: |
|
Low Moving Mass & Inertia: The lightweight nature of nylon minimizes extra weight on moving carriages, allowing small stepper and servo motors to achieve high accelerations without extra torque strain. |
|
Chemical & Oil Resistance: The PA66 material resists degradation from common industrial lubricants, cutting fluids, mild chemicals, and solvents. |
|
Wide Thermal Tolerance: Operates reliably across a broad temperature spectrum (-40°C to +120°C), making it suitable for demanding thermal environments. |
|
3. Smooth, Low-Noise Dynamic Articulation |
|

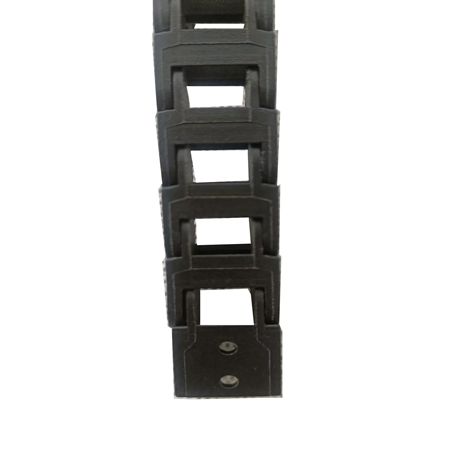

Noise reduction and vibration dampening are critical factors in cleanroom, laboratory, and desktop automation environments. Precision-molded link pivots within a 7mm drag chain ensure tight manufacturing tolerances and smooth joint articulation along a set bending radius. This engineered geometry minimizes mechanical chatter, suppresses operational vibration, and guarantees whisper-quiet performance during continuous high-speed travel. |
|
4. Controlled Bending Radius and Cable Longevity |
|
Uncontained signal wires, optical fibers, and pneumatic tubes are highly vulnerable to conductor fatigue, severe twisting, and outer jacket wear when exposed to repetitive motion. A drag chain 7mm carrier solves this problem by maintaining a consistent minimum bending radius during linear strokes. By absorbing kinetic stress and isolating internal lines from sharp structural edges, it prevents premature conductor breakage and significantly reduces equipment downtime and maintenance costs. |
|
Primary Application Scenarios |
|
The unique physical advantages of this micro cable track make it a preferred choice across high-tech sectors: |
|
Medical Devices & Lab Automation: Ensures smooth routing for liquid handler tubing, diagnostic sensor wires, and robotic pipette lines. |
|
3D Printers & Desktop CNC Tools: Protects printhead wiring harnesses along X and Y gantries without adding unnecessary inertia. |
|
Semiconductor & SMT Assembly: Delivers reliable guidance for micro-coaxial wires and vacuum tubes on high-speed pick-and-place nozzles. |
|
Optical Inspection & Camera Gantries: Prevents signal distortion on moving high-speed vision camera rigs. |
|
|
|
Conclusion |
|
When spatial constraints demand an uncompromising balance between structural protection and minimal physical footprint, deploying a nylon 7mm drag chain is the ultimate design choice. By incorporating a high-precision drag chain 7mm solution, equipment manufacturers can improve dynamic reliability, extend internal line longevity, and optimize modern micro-automation systems. |
|
Model |
Inner Dimension |
Outer Dimension |
Bending Radius |
|
|
Y700.07.BK |
7*7mm |
10.5*12.5mm |
18 |
|
Key Application Scenarios for the 7mm Nylon Cable Carrier
|
|
In the modern landscape of micro-automation, precision electronic manufacturing, and medical robotics, equipment designs are rapidly shrinking while performance expectations continue to rise. As motion control setups become more compact, organizing and shielding delicate electrical wiring, sensor leads, and micro-pneumatic tubing within restricted physical envelopes has become a critical engineering challenge. The ultra-low-profile nylon cable carrier with an internal clearance height of 7mm provides a tailored solution. Below is an in-depth look at the primary application scenarios where a high-performance drag chain 7mm system plays a vital role.
|
|
1. 3D Printing and Desktop Digital Fabrication
|
|
Additive manufacturing equipment and desktop CNC tools operate through rapid, repetitive linear motions within tight enclosures. In Fused Deposition Modeling (FDM) 3D printers, stereolithography (SLA) systems, and small desktop engravers, space along the moving X and Y gantries is extremely limited. |
|
A lightweight nylon 7mm drag chain is commonly mounted along these motion axes to route heating element power cables, thermistor leads, and stepper motor wiring. Its low mass ensures that moving printheads can achieve high accelerations without placing extra torque strain on small motors. Furthermore, by keeping wires neatly confined along a fixed bending curve, the drag chain 7mm prevents cables from catching on print beds or experiencing copper conductor fatigue caused by continuous flexing.
|
|
2. Medical Laboratory Automation and Clinical Diagnostic Tools
|
|
Modern pharmaceutical labs and medical facilities rely heavily on automated liquid handlers, automated pipetting stations, blood analyzers, and micro-plate readers. These high-throughput systems operate inside compact, enclosed workstations where low operational noise and zero particulate contamination are paramount. |
|
Deploying a micro 7mm drag chain enables medical equipment engineers to safely guide thin pneumatic tubing, reagent fluid lines, and low-voltage sensor wiring. The low-friction reinforced nylon (PA66) material guarantees smooth, whisper-quiet articulation while shielding sensitive fluid lines from severe kinks, pinching, and dynamic abrasion.
|
|
3. Semiconductor Manufacturing and SMT Assembly Equipment
|
|
In micro-electronics manufacturing, assembly speed and positioning accuracy are measured in milliseconds and microns. Surface Mount Technology (SMT) pick-and-place machines, IC chip bonders, and automated optical inspection gantries move across compact work areas with extremely high accelerations |
|
In these demanding setups, a drag chain 7mm carrier acts as a precise dynamic guide for micro-coaxial cables, sensor wires, and vacuum lines powering robotic nozzle heads. Built from wear-resistant nylon, the 7mm drag chain resists mechanical fatigue and handles millions of rapid motion cycles without shedding harmful dust particles that could compromise sensitive silicon components.
|
|
4. Optical Inspection and Automated Scanning Systems
|
|
Advanced vision inspection rigs, slide scanners, and camera gantries require uninterrupted power and ultra-fast data transmission without signal distortion. Unguided lines moving along sliding guide rails risk tangling, twisting, or rubbing against frame edges, leading to premature wire failure. |
|
A precision nylon drag chain 7mm tracks smoothly alongside linear rails, keeping optical fibers and high-flex sensor leads aligned and separated. By maintaining a uniform bending radius during continuous scanning sweeps, the 7mm drag chain protects delicate internal conductors from dynamic strain and prevents signal interference.
|
|
Conclusion
|
|
Whether in desktop 3D printers, clinical laboratory instruments, semiconductor assembly lines, or optical inspection platforms, the nylon drag chain 7mm carrier is an essential dynamic guide for space-constrained engineering. By organizing micro-lines and absorbing dynamic stress, incorporating a 7mm drag chain allows machine builders to minimize equipment footprints, improve operational reliability, and extend cable lifespan. |
