Core Engineering Advantages of the 10mm Nylon Cable Carrier
|
|
In modern precision engineering, micro-automation, and medical robotics, physical spatial limits present a continuous challenge for machine designers. As motion control mechanisms become smaller, faster, and more integrated, shielding dynamic power lines, optical sensor leads, and pneumatic tubing requires purpose-built cable management tools. A low-profile nylon carrier with an internal clearance height of 10mm provides a highly efficient solution. Below is a detailed breakdown of the structural and operational advantages offered by a high-performance micro drag chain 10mm system.
|
|
1. Optimized Clearance for Compact Machinery Enclosures |
|
The defining architectural feature of a small drag chain 10mm is its low-profile profile. Featuring an internal clearance height of exactly 10mm, it bridges the gap between ultra-micro carriers and medium industrial cable tracks. This specific dimension allows machine builders to downsize gantry profiles, robot arms, and equipment housings without compromising dynamic wire protection. By optimizing internal space, engineers can develop sleeker, more compact automated systems that fit into tight laboratory or factory footprints.
|
|
2. Reinforced PA66 Nylon Construction for High Durability |
|

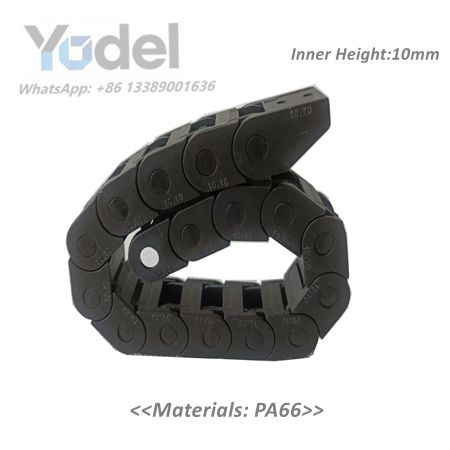

A premium micro drag chain 10mm carrier is manufactured from high-grade glass-fiber-reinforced polyamide (PA66 nylon). This engineering polymer delivers an exceptional strength-to-weight ratio, ensuring high structural rigidity and dynamic fatigue resistance despite its compact size. Key material benefits include: |
|
Low Moving Mass & Inertia: The lightweight nylon construction minimizes additional weight on moving carriages, allowing small stepper and servo motors to achieve high accelerations without torque overload. |
|
Chemical & Oil Resistance: The PA66 material resists degradation from cutting fluids, industrial lubricants, mild solvents, and airborne contaminants. |
|
Thermal Stability: Operates continuously across a broad temperature range (-40°C to +120°C), making it suitable for demanding thermal environments.
|
|
3. Smooth, Low-Noise Dynamic Articulation |
|
Operational quietness and minimal vibration are crucial requirements in cleanrooms, laboratories, and desktop automation environments. Precision-molded link pivots within a small drag chain 10mm carrier ensure tight manufacturing tolerances and smooth articulate motion along a fixed bending radius. This engineered geometry suppresses mechanical chatter, reduces friction, and guarantees whisper-quiet performance during high-speed, continuous travel.
|
|
4. Extended Cable Lifespan and Strain Relief |
|
Unguided flex cables, optical fibers, and pneumatic lines subjected to continuous repetitive motion are highly vulnerable to conductor fatigue, severe twisting, and outer jacket wear. A micro drag chain 10mm carrier addresses this issue by maintaining a consistent minimum bending radius during linear strokes. By absorbing dynamic strain and isolating internal conductors from sharp structural edges, a small drag chain 10mm system prevents premature copper breakage and significantly reduces equipment downtime.
|
|
Primary Application Scenarios
|
|
The unique physical advantages of a 10mm nylon dynamic track make it a preferred choice across advanced technology sectors:
|
|
3D Printers & Small CNC Machines: Delivers low-inertia cable routing for moving printhead wiring harnesses and spindle leads. |
|
Medical & Lab Automation: Protects reagent fluid hoses, sensor leads, and sample pipetting lines in automated diagnostic tools. |
|
Semiconductor & SMT Equipment: Powering high-speed pick-and-place nozzles, micro-soldering setups, and optical inspection heads. |
|
Camera Gantries & Optical Scanners: Prevents signal distortion and cable snagging on sliding vision camera rigs and laser scanners.
|
|
Conclusion
|
|
When spatial constraints demand an uncompromising balance between dynamic cable protection and compact dimensions, deploying a nylon micro drag chain 10mm carrier is the ideal design choice. By incorporating a high-precision small drag chain 10mm system, equipment manufacturers can improve operational reliability, extend dynamic cable service life, and maximize overall machine performance. |
|
Model |
Inner Dimension |
Outer Dimension |
Bending Radius |
Bridge |
Fully Enclosed |
Semi Fully Enclosed |
|
Y1000.010.BK |
10*10mm |
15*17mm |
|
Y |
N |
N |
|
Y1000.015.BK |
10*15mm |
15*22mm |
|
Y |
N |
N |
|
Y1000.020.BK |
10*20mm |
15*27mm |
18 |
Y |
N |
N |
|
Y1000.030.BK |
10*30mm |
15*37mm |
|
Y |
N |
N |
|
Primary Application Scenarios for the 10mm Nylon Cable Carrier
|
|
In the modern landscape of high-precision manufacturing, laboratory robotics, and compact automation, machine designs are continuously shrinking while operational speed and accuracy expectations climb. As dynamic mechanisms become increasingly streamlined, organizing and shielding delicate wiring harnesses, sensor leads, and pneumatic tubes inside severe physical spatial limits has become a core engineering requirement. An ultra-low-profile nylon cable track with an internal clearance height of 10mm provides a tailored dynamic solution. Below is an in-depth breakdown of the primary application scenarios where a high-performance 10mm micro drag chain system plays a critical role.
|
|
1. 3D Printing and Desktop CNC Machinery |
|
Additive manufacturing systems and small digital fabrication tools operate using rapid, continuous linear movements within enclosed work volumes. In industrial-grade desktop FDM 3D printers, stereolithography (SLA) resin setups, and micro-CNC engraving routers, space along moving X and Y gantries is strictly limited. |
|
Deploying a lightweight 10mm small drag chain along these moving axes ensures smooth, low-inertia routing for printhead heating elements, thermistor sensor wires, and stepper motor power lines. Because of its light nylon build, the chain allows printheads and gantries to achieve rapid accelerations without placing extra torque loads on drive motors. Furthermore, by confining wires within a fixed bending radius, the 10mm micro drag chain prevents cable snagging against bed frames and guards against internal copper conductor fatigue caused by continuous flexing.
|
|
2. Medical Laboratory Automation and Analytical Instruments |
|
Modern pharmaceutical research facilities, clinical laboratories, and blood processing centers rely heavily on automated liquid handlers, micro-plate readers, and robotic pipetting workstations. These high-throughput diagnostic tools perform rapid sample movements inside compact, fully enclosed cabinets where low operational noise and zero dust generation are vital |
|
A micro-sized 10mm small drag chain allows medical equipment designers to safely guide flexible reagent tubing, fluid delivery lines, and low-voltage signal wires. Constructed from smooth, low-friction polyamide (PA66), the carrier provides quiet articulation while preventing fluid micro-hoses from kinking, pinching, or rubbing against structural edges during fast sample transfer cycles.
|
|
3. Semiconductor Assembly and SMT Electronics Manufacturing |
|
In micro-electronics assembly and semiconductor processing, dynamic precision and positioning speeds are measured in milliseconds and micrometers. Surface Mount Technology (SMT) pick-and-place machines, IC chip bonders, and automated optical inspection gantries move across tight work areas with high accelerations. |
|
In these demanding environments, a 10mm micro drag chain acts as a reliable dynamic guide for micro-coaxial cables, sensor wires, and vacuum lines supplying robotic suction nozzles. The reinforced PA66 nylon construction delivers high tensile durability and chemical resistance, enduring millions of high-speed motion cycles without generating harmful particulate dust that could contaminate sensitive silicon wafers or electronic substrates.
|
|
4. Optical Inspection and Moving Vision Systems
|
|
Advanced vision inspection rigs, slide scanners, and dynamic camera gantries require continuous power and ultra-fast data transmission without signal noise or distortion. Loose, unguided cables moving along linear guide rails risk twisting, sagging, or catching on structural components, which leads to signal degradation or sudden wire failure. |
|
A precision nylon 10mm small drag chain tracks smoothly along linear guide rails, keeping optical fiber lines and high-flex camera cables neatly separated and aligned. By maintaining a uniform bending curvature during continuous scanning sweeps, the 10mm micro drag chain prevents internal line strain and protects dynamic camera feeds from signal distortion.
|
|
Conclusion
|
|
Whether in additive 3D printers, clinical diagnostic machinery, semiconductor assembly lines, or high-speed vision inspection gantries, a low-profile 10mm nylon cable track is an essential component for space-constrained engineering. By organizing micro-cables and absorbing dynamic mechanical strain, integrating a 10mm micro drag chain enables equipment manufacturers to shrink machine footprints, improve operational reliability, and maximize cable service life. |
