High-Performance 15mm Inner Height Nylon Cable Drag Chains: Features & Functional Applications
|
|
In compact automation, robotics, and small-scale machine building, precision cable management is essential to prevent mechanical wear, wire fatigue, and costly downtime. When space is limited yet high-frequency motion is required, an inner height 15mm nylon cable carrier provides an ideal structural guide. Manufactured from premium engineering polyamide (Nylon PA66), this series offers exceptional durability, structural rigidity, and smooth articulation in tight machine enclosures. |
|
Key Features & Functional Advantages
|
|
1. Compact Profile for Space-Constrained Designs The 15mm inner height series is specifically designed for small to mid-sized machinery where spatial clearance is tight. Despite its slim profile, the reinforced link design maintains continuous bending resistance and prevents cables, signal wires, and pneumatic hoses from exceeding their minimum bend radius.
|
|
2. High Mechanical Strength & Chemical Resilience Constructed from high-grade Nylon PA66, these cable carriers exhibit superior tensile strength, abrasion resistance, and temperature stability (operating reliably between -40°C and +120°C). Unlike metal alternatives, nylon is completely immune to corrosion, rust, industrial lubricants, cutting fluids, and mild chemical agents.
|
|
3. Smooth, Quiet, and Low-Vibration Motion Featuring precision-molded pin-and-bore joint mechanisms, the individual chain links articulate smoothly with minimal friction. This low-friction performance significantly reduces operational acoustic noise and minimizes mechanical vibration during high-speed gantry travel.
|
|
4. Modular Link Construction & Easy Maintenance The snap-fit modular link structure allows quick adjustment of total stroke length by adding or removing individual links. Depending on the exact model variant, openable crossbars make cable installation and routine inspections fast and simple, eliminating the need to disconnect wiring terminals.
|
|
Specifications & Width Variations
|
|
To accommodate different cable bundles and hose configurations, the 15mm inner height series comes in multiple standard inner widths:
|
|

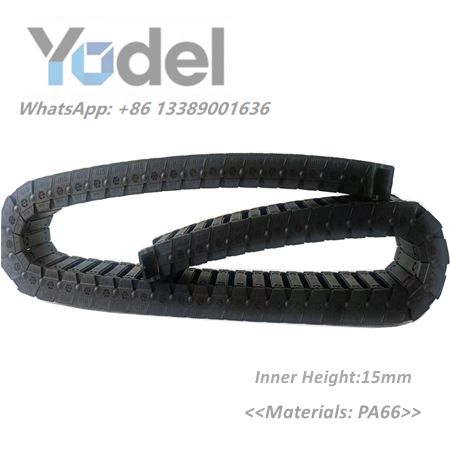

cable drag chain 15mm x 15mm: Ideal for ultra-compact applications requiring guided routing for a single power cable, sensor line, or slim pneumatic tube. |
|

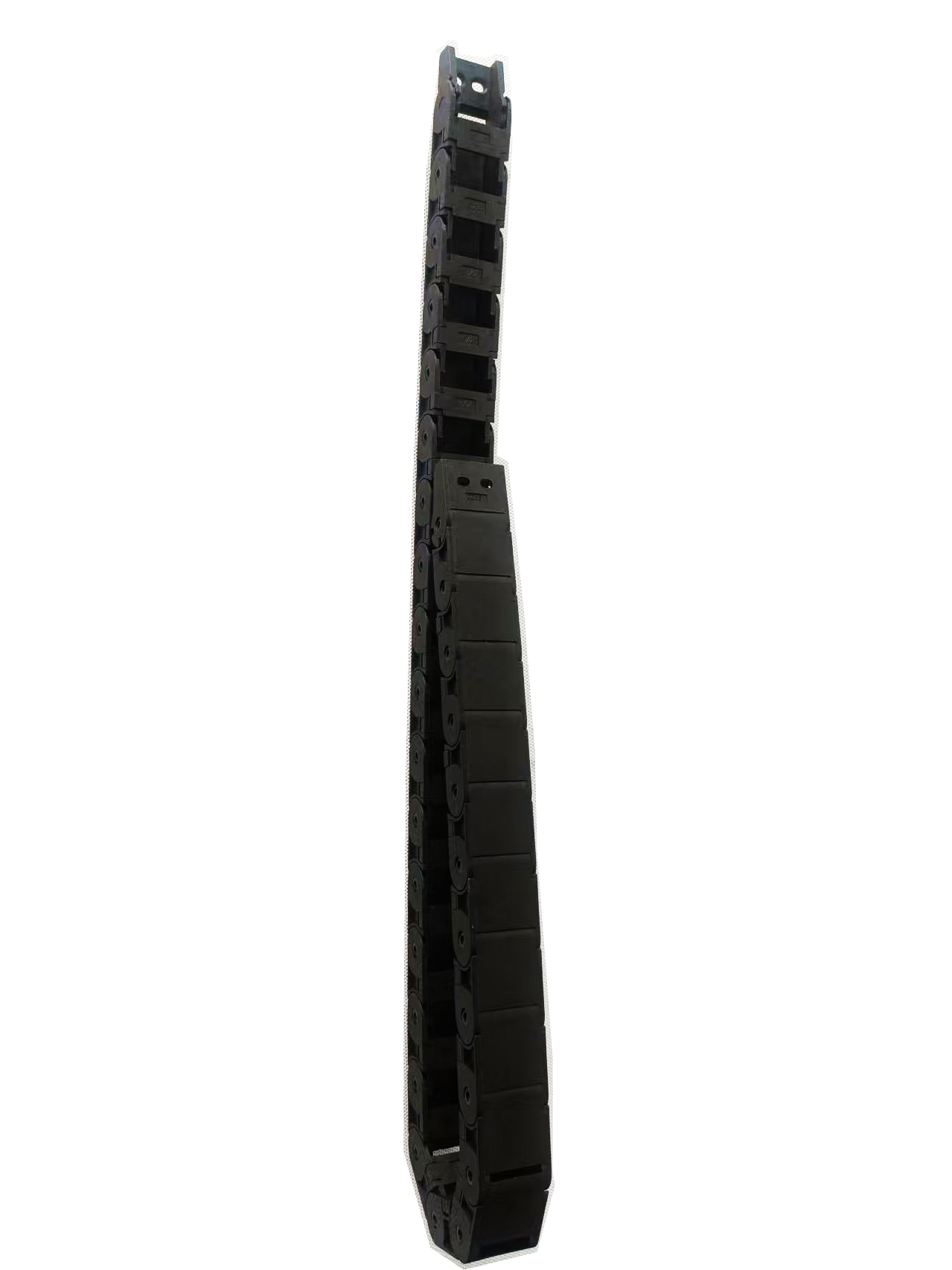

cable drag chain 15mm x 20mm: A versatile compact size suitable for light-duty 3D printer gantries, small engravers, and compact automation modules. |
|

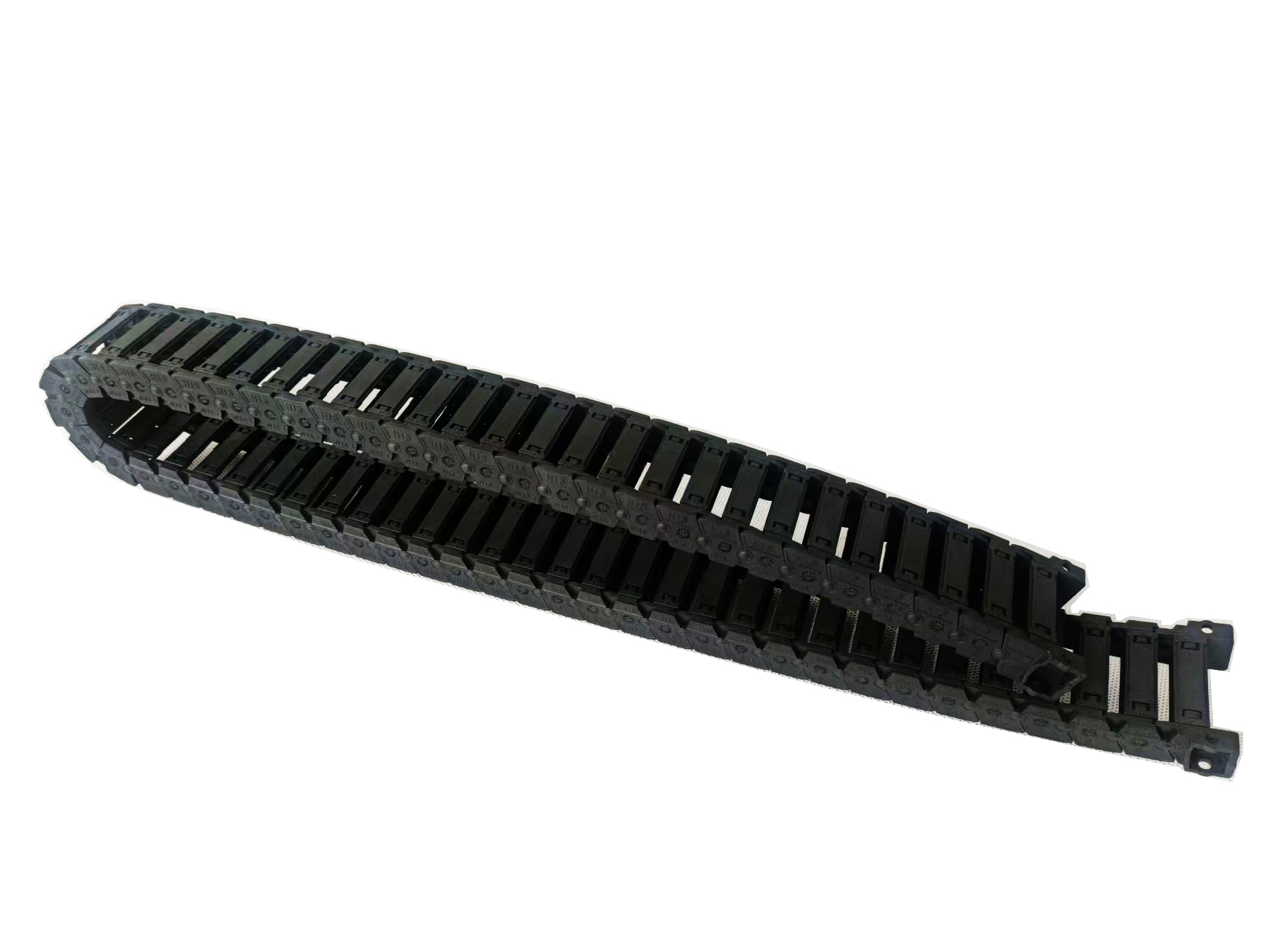

cable drag chain 15mm x 30mm: Provides extra internal cross-section to neatly separate multiple signal lines or mixed electrical conduits in CNC routers and pick-and-place units. |
|

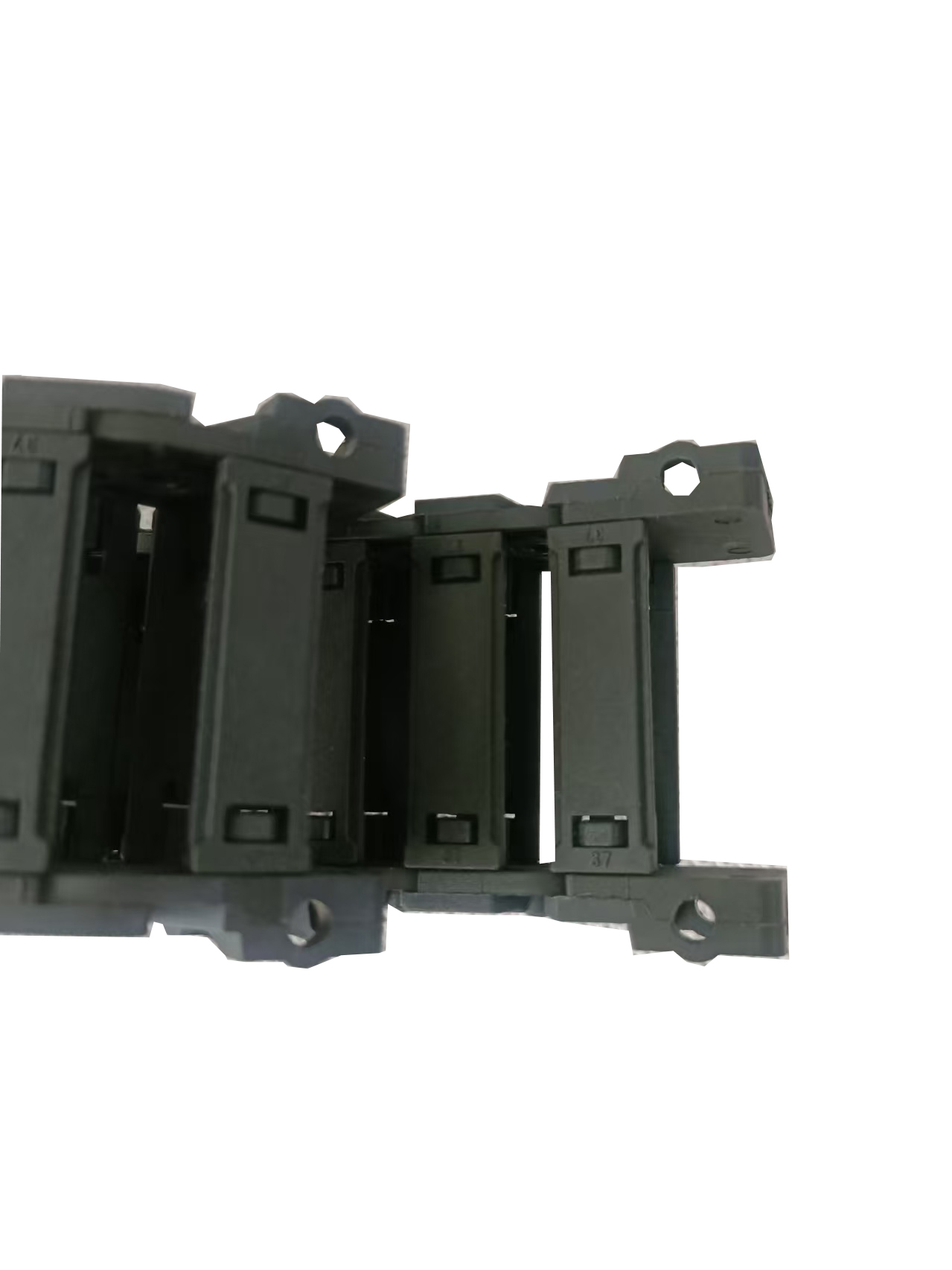

cable drag chain 15mm x 40mm: Offers broader internal clearance for multi-axis machinery requiring organized parallel lay-in of multiple motor leads and control cables. |
|

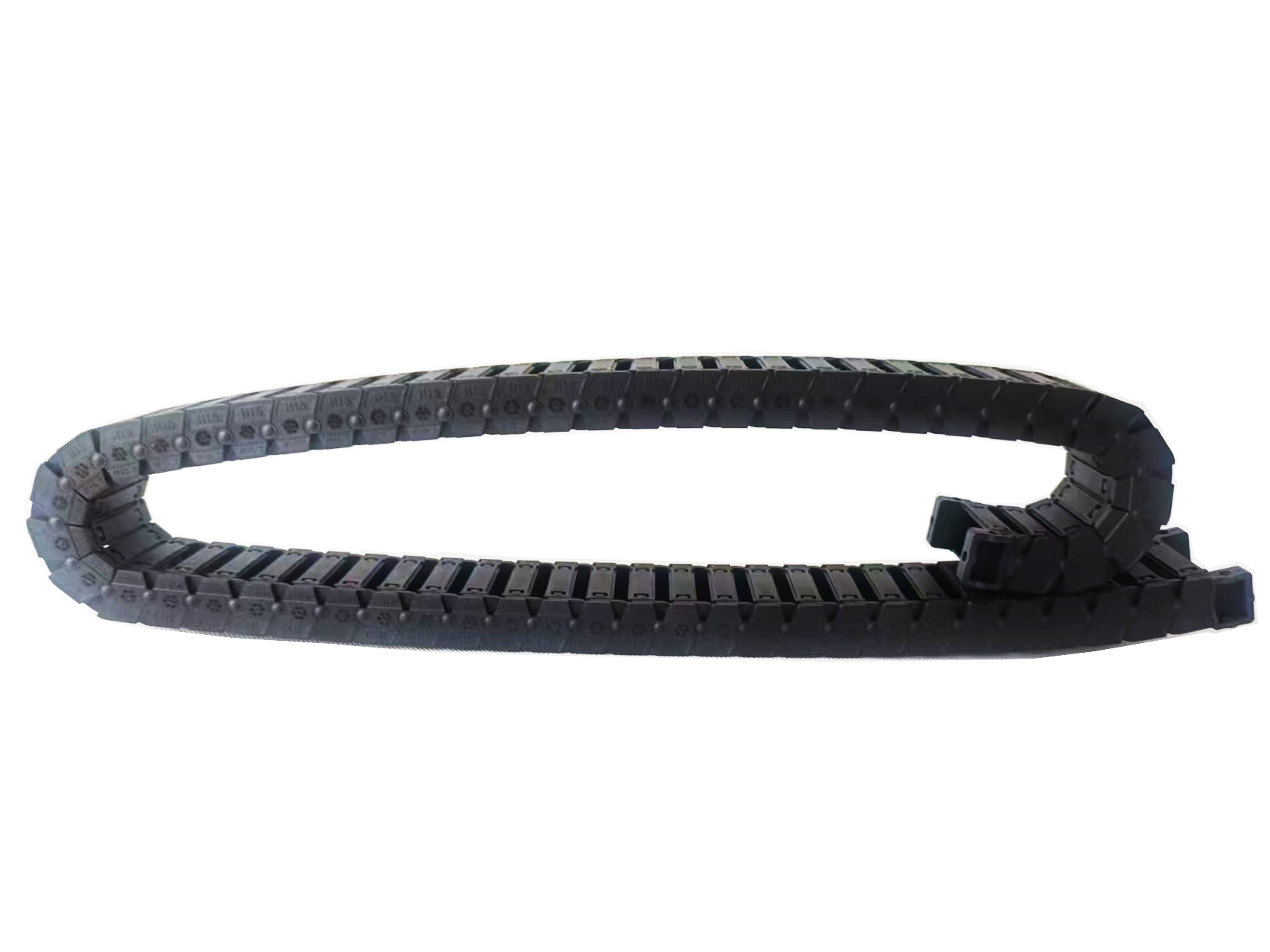

cable drag chain 15mm x 50mm: Designed for wide cable arrangements where low profile meets high volume capacity, ensuring cables lie flat without overlapping or tangling.
|
|
Primary Industrial Applications
|
|
The 15mm inner height nylon cable drag chain series is widely used across high-precision dynamic machinery: |
|
3D Printers & Desktop CNC Routers: Protects stepper motor cables and hotend wiring during rapid XY gantry movements. |
|
Small-Scale Laser Engravers & Cutters: Guides lightweight laser diode or fiber control lines smoothly along overhead tracks. |
|
Medical Devices & Lab Automation: Provides clean, silent, and particulate-free cable guidance in automated testing equipment. |
|
Electronics Assembly & Pick-and-Place Machines: Ensures continuous, high-frequency reciprocating movement without signal line fatigue or interruption. |
|
Model |
Inner Dimension |
Outer Dimension |
Bending Radius |
Bridge |
Fully Enclosed |
Semi Fully Enclosed |
|
Y1500.015.BK |
15mm*15mm |
20mm*23mm |
|
N |
N |
Y |
|
Y1500.020.BK |
15mm*20mm |
20mm*29mm |
|
N |
N |
Y |
|
Y1500.030.BK |
15mm*30mm |
20mm*39mm |
28 38 48 |
N |
N |
Y |
|
Y1500.040.BK |
15mm*40mm |
20mm*49mm |
|
N |
N |
Y |
|
Y1500.050.BK |
15mm*50mm |
20mm*59mm |
|
N |
N |
Y |
|
Key Application Scenarios for 15mm Inner Height Nylon Cable Drag Chains |
|
In precision engineering, automated manufacturing, and compact industrial design, managing moving cables and pneumatic lines is critical. A high-quality nylon cable carrier prevents wire damage, reduces mechanical fatigue, and avoids costly production line stoppages. The 15mm inner height series—often searched as the cable drag chain 15—is a versatile, compact solution specifically engineered for space-constrained dynamic machinery. |
|
By providing a stable bending radius and low-friction motion, these cable carriers excel across diverse high-precision environments. Below are the primary application scenarios for the cable drag chain 15 series, broken down by specific size configurations and industry needs.
|
|
1. High-Speed 3D Printers & Desktop CNC Machines
|
|
Compact digital fabrication equipment demands lightweight components that do not add unnecessary inertia to fast-moving gantries. In these setups, maintaining a small footprint without sacrificing internal clearance is vital. |
|
cable drag chain 15mm x 15mm: Perfectly suited for small-format 3D printers, desktop CNC engravers, and PCB prototyping units. It neatly routes individual stepper motor wiring, endstop sensor lines, and hotend power cables along the X and Y axes. |
|
cable drag chain 15mm x 20mm: Used in mid-sized desktop CNC routers where additional space is needed to house coolant mist tubes alongside motor power conduits without causing friction or binding.
|
|
2. Electronics Manufacturing & Automated Pick-and-Place Equipment |
|
Surface-mount technology (SMT) assembly lines and semiconductor testing systems operate at high cycle speeds and extreme positional precision. Cables powering robotic heads and high-speed gantries must move smoothly without generating noise, vibration, or particulate wear. |
|
cable drag chain 15mm x 30mm: Ideal for automated pick-and-place machines, component feeders, and automated optical inspection (AOI) units. This width allows multi-core encoder lines, camera data cables, and low-pressure air lines to lie side-by-side without overlapping. |
|
cable drag chain 15mm x 40mm: Frequently integrated into multi-head dispensing robots and robotic soldering stations that require structured separation between high-frequency signal lines and primary power leads.
|
|
3.Light Industrial Automation & Packaging Machinery
|
|
In automated packaging, pharmaceutical labeling, and light material handling systems, continuous reciprocating motion is standard. The non-corrosive, self-lubricating properties of Nylon PA66 make the cable drag chain 15 series an excellent alternative to heavy, maintenance-intensive metal carriers. |
|
cable drag chain 15mm x 50mm: Designed for wide flat-lay configurations on automated sorting tables, capping machines, and inkjet coding gantries. The generous 50mm internal width lets technicians arrange numerous low-voltage cables in a single flat layer, ensuring equal strain relief across all conductors.
|
|
4. Medical Devices & Laboratory Automation Systems |
|
Laboratory liquid handlers, diagnostic analyzers, and medical imaging units require silent, clean, and highly reliable movement. The low-friction joint design of standard nylon drag chains minimizes dust generation, meeting strict laboratory cleanliness standards. |
|
Whether configuring compact reagent tray arms with a cable drag chain 15mm x 15mm or managing comprehensive sensor harnesses with a cable drag chain 15mm x 30mm, this inner height series offers predictable, maintenance-free service. |
