Key Features and Advantages of a Nylon Drag Chain 5mm |
|
In modern precision automation, miniaturized machinery, and medical technology, controlling motion within confined spaces is a significant engineering challenge. As dynamic mechanisms become smaller and faster, the components protecting power, data, and fluid lines must evolve accordingly. The micro-sized nylon dynamic cable carrier with a 5mm internal clearance height stands as a benchmark solution for restricted spaces. Below is a comprehensive look at the key structural, operational, and material features of a high-performance drag chain 5mm system.
|
|
1. Ultra-Low Profile and Compact Footprint
|
|
The defining characteristic of a drag chain 5mm carrier is its exceptionally small dimensional profile. Designed specifically for micro-scale motion systems, this chain offers an internal height of exactly 5mm, allowing engineers to route delicate wiring harnesses and flexible pneumatic tubing through tight machine cavities. By minimizing overall height and outer dimensions, it enables compact equipment designs without sacrificing dynamic cable protection. |
|
2. High-Grade Reinforced Nylon Construction
|
|
A premium drag chain 5mm is manufactured from high-strength reinforced polyamide (typically Nylon PA66). This high-performance polymer provides exceptional tensile strength, rigidity, and fatigue resistance despite its small cross-sectional area. Key material advantages include: |
|
Low Inertia & Mass: The lightweight nature of nylon minimizes moving mass, allowing small servo and stepper motors to achieve high accelerations without extra strain. |
|
Chemical & Oil Resistance: The nylon material withstands exposure to industrial lubricants, common solvents, and mild chemical splashes found in manufacturing environments. |
|
Thermal Stability: Operating reliably across a broad temperature spectrum, a nylon dynamic chain remains flexible and strong under varying thermal conditions.
|
|
3. Smooth, Low-Noise Dynamic Operation
|
|
In precision automation, vibration and acoustic noise must be kept to a minimum. The individual links of a micro-sized drag chain 5mm system are molded with precise tolerances at the joint connection points. This engineered joint geometry facilitates smooth bending articulation along a fixed radius, suppressing mechanical chatter and operational sound. This whisper-quiet performance makes it particularly suitable for cleanroom environments, desktop machinery, and medical laboratory equipment.
|
|
4. Controlled Bending Radius and Cable Protection
|
|
Delicate micro-cables, optical fibers, and thin-walled air hoses are prone to internal conductor fatigue and outer jacket wear when subjected to uncontrolled bending and twisting. A drag chain 5mm prevents these failures by maintaining a predefined minimum bending radius throughout its linear travel. By isolating moving conductors from mechanical stress, tension, and friction against adjacent machine frame components, it significantly extends the service life of internal wiring and prevents unexpected system downtime.
|
|
5. High-Speed Acceleration Capability
|
|
Due to its high strength-to-weight ratio and low friction coefficient, a nylon drag chain 5mm carrier excels in high-speed, high-cycle linear motions. It provides continuous guidance along rapid X, Y, and Z axes without buckling or experiencing premature wear on the link pivots.
|
|
Primary Application Fields
|
|
The unique characteristics of a micro nylon dynamic carrier make it a vital component in several specialized sectors: |
|
3D Printers and Desktop CNC Units: Guides wiring assemblies across compact printing heads and gantries. |
|
Medical Diagnostic Equipment: Manages fluidic lines and electrical wiring in automated liquid handlers and robotic analyzers. |
|
Semiconductor & Micro-Electronics: Powers fast pick-and-place nozzles, inspection heads, and surface-mount technology (SMT) equipment. |
|
Primary Application Scenarios for the 5mm Nylon Drag Chain
|
|
In the realm of advanced precision engineering and industrial automation, equipment designs are rapidly shrinking while performance requirements continue to soar. As motion control mechanisms become more compact, protecting delicate electrical wiring, fiber optics, and fluidic lines within extremely tight spaces has become a critical challenge. The micro-sized nylon cable carrier with a 5mm internal height offers a tailored solution. Below is a detailed breakdown of the primary application scenarios where a high-performance drag chain 5mm system plays an indispensable role.
|
|
1. 3D Printing and Desktop CNC Machinery
|
|

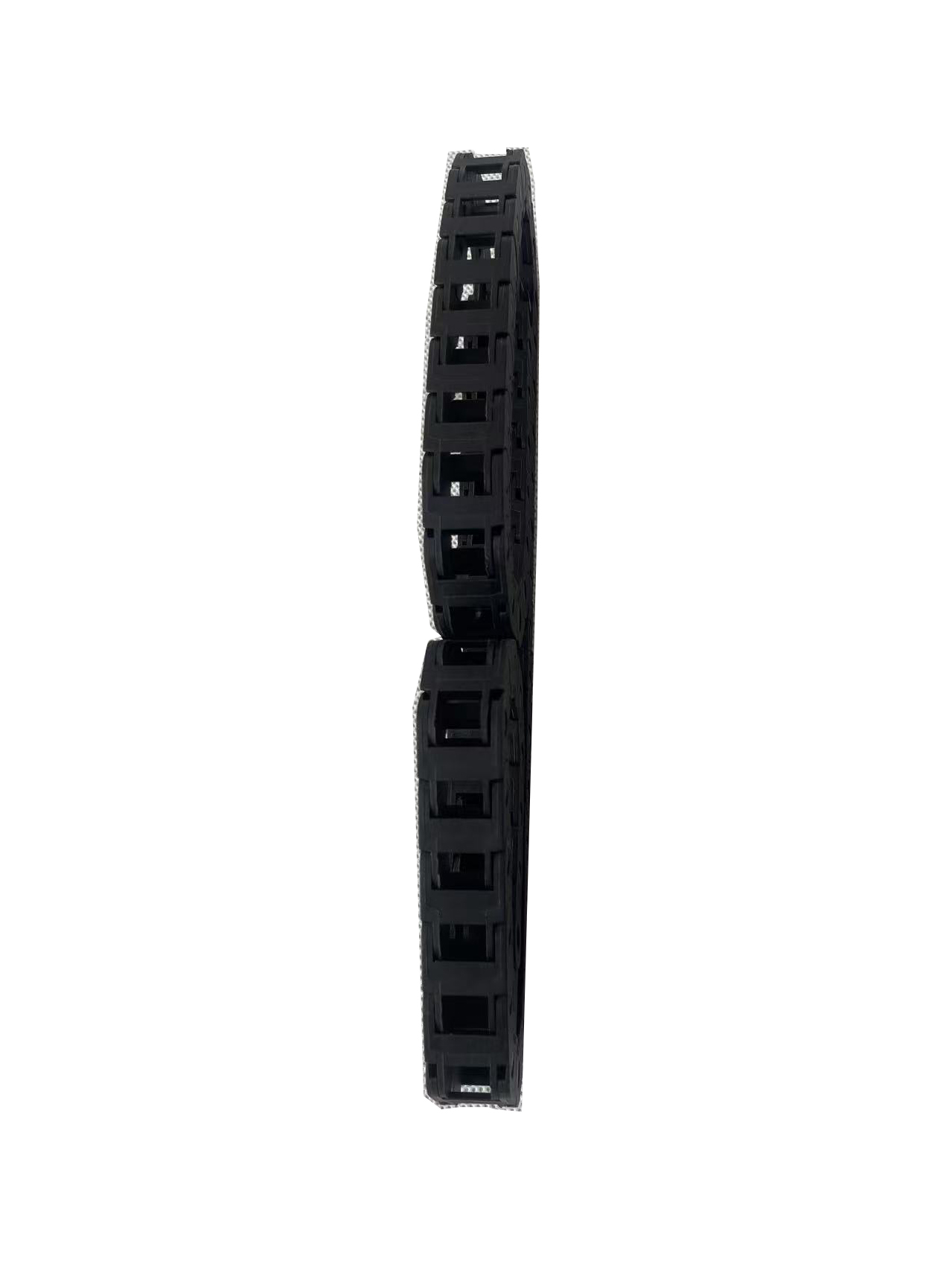

Additive manufacturing and desktop digital fabrication rely heavily on fast, high-frequency linear movements within restricted enclosures. In Fused Deposition Modeling (FDM) 3D printers, stereolithography (SLA) systems, and small-scale CNC engraving routers, spatial constraints along the X and Y gantries are common. |
|
A lightweight nylon drag chain 5mm carrier is frequently mounted to guide power cables, thermistor sensor wires, and stepper motor lines. Its low mass ensures that moving print heads can accelerate rapidly without adding extra load or inertia to the drive motors. Furthermore, by keeping wires neatly contained along a set bending radius, it prevents cable snagging on the print bed frame and guards against conductor fatigue caused by continuous flexing.
|
|
2. Medical Laboratory Automation and Analytical Instruments
|
|
Modern clinical laboratories and pharmaceutical research facilities rely on automated liquid handlers, blood analyzers, micro-plate readers, and automated pipetting systems. These instruments perform high-throughput sample processing inside compact, enclosed workstations where low noise and high reliability are paramount. |
|
Deploying a micro-sized drag chain 5mm structure allows medical device manufacturers to safely route thin pneumatic tubing, fluid delivery hoses, and low-voltage signal lines. The low-friction nylon material provides smooth, whisper-quiet operation—essential for lab settings—while shielding fragile fluid lines from kinks, friction, and pinching that could disrupt precise fluid dispensing.
|
|
3. Semiconductor Manufacturing and SMT Equipment
|
|
In electronics assembly and semiconductor fabrication, machine speed and precision are measured in milliseconds and microns. Surface Mount Technology (SMT) pick-and-place machines, chip bonders, and optical inspection gantries move at exceptionally high accelerations across small work areas. |
|
In these environments, a drag chain 5mm system serves as an efficient dynamic guide for micro-coaxial cables, sensor wires, and vacuum lines powering robotic nozzle heads. Constructed from high-grade reinforced nylon (PA66), the micro chain delivers high tensile strength and chemical resistance, enduring millions of high-speed cycles without generating harmful particulate dust that could contaminate sensitive silicon wafers.
|
|
4. Optical Scanning and Precision Inspection Systems
|
|
Advanced vision inspection setups, slide scanners, and moving camera gantries require continuous power and high-speed data transmission without signal distortion. Loose cables running along sliding rails can twist or catch on structural edges, leading to premature signal degradation or mechanical failure. |
|
A precision nylon drag chain 5mm tracks cleanly alongside linear guide rails, keeping optical fibers and high-flex camera cables separated and aligned. By maintaining a uniform bending profile during long scanning sweeps, the chain prevents internal conductor strain and protects sensitive optical signals from dynamic distortion.
|
|
Conclusion
|
|
Whether in 3D printers, medical diagnostic equipment, semiconductor assembly lines, or high-precision optical rigs, the nylon drag chain 5mm carrier is an essential dynamic component for space-constrained engineering. By organizing micro-cables and preventing dynamic strain, it enables machine builders to achieve smaller equipment footprints, smoother operation, and maximum operational lifespan. |
