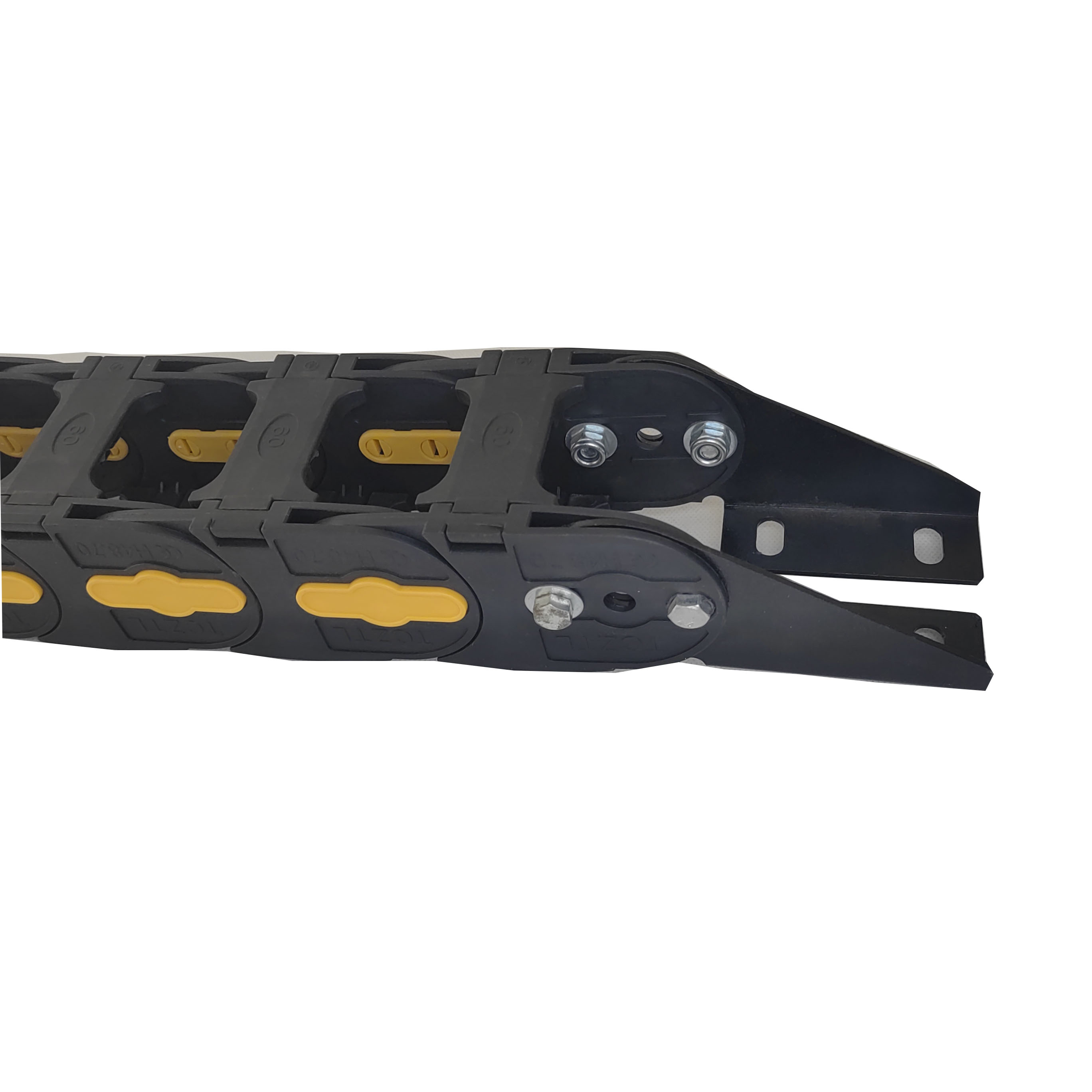

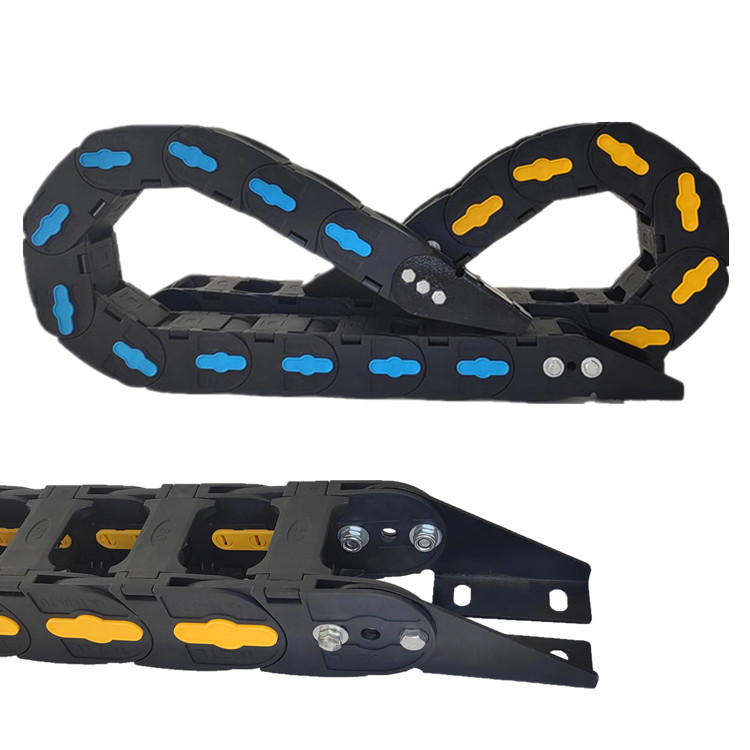

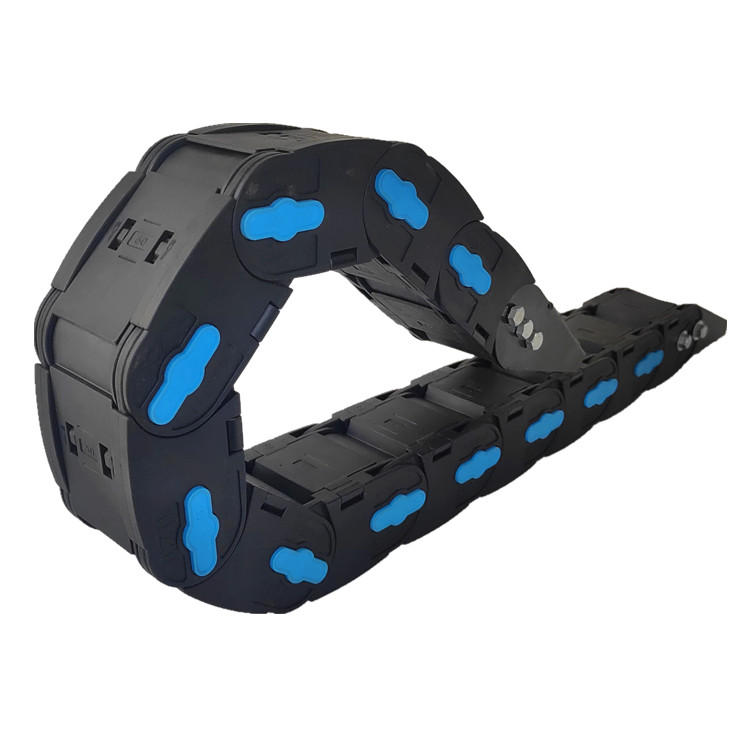

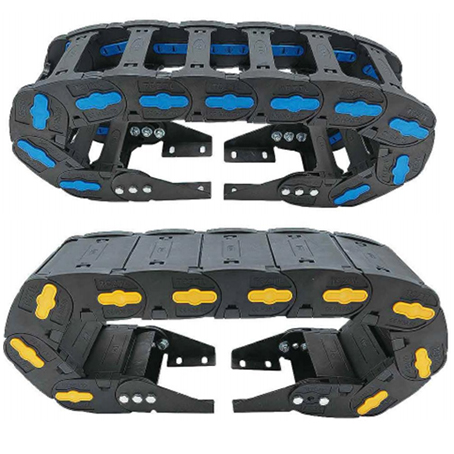

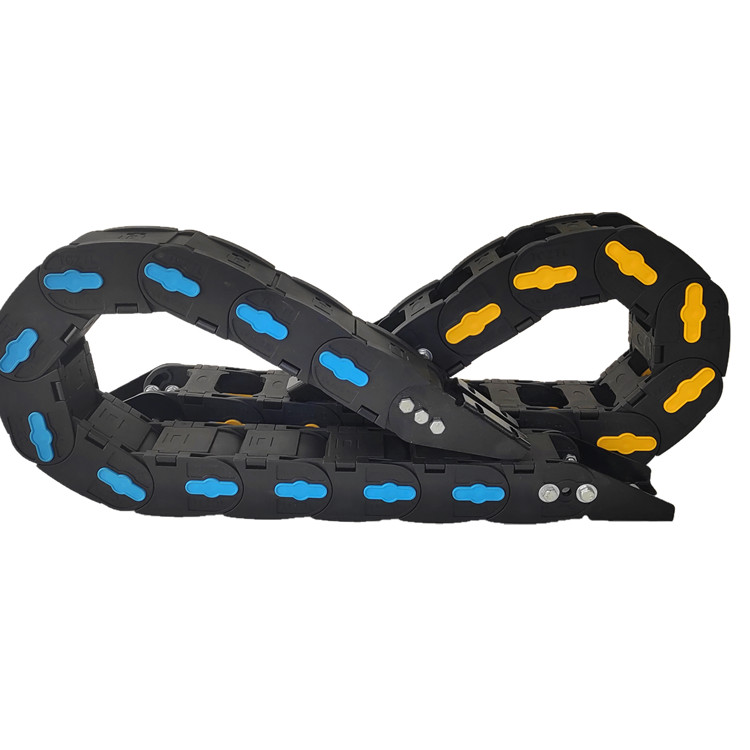

The 38mm inner height side-open heavy-duty drag chain is designed with a side opening structure for convenient wiring installation, inspection and daily maintenance. It boasts excellent load-bearing capacity, tensile resistance, wear resistance and stable reciprocating operation performance. It is widely applicable to CNC machine tools, automated assembly lines, industrial robot arms, logistics conveying equipment, packaging machinery, stone processing machinery and metal cutting equipment. It can safely protect cables, air hoses and hydraulic pipelines during high-frequency reciprocating movement. It perfectly adapts to medium and heavy industrial working conditions, featuring low noise, long service life and strong environmental adaptability, which effectively improves the stability and service life of automated mechanical equipment.
|
Model |
Inner Height * Inner Width |
Outer Height * Outer Width |
Bending Radius |
Bridge |
Fully Enclosed |
Semi Fully Enclosed |
|
C3800.050.FL |
38 * 50 |
60 * 75 |
75 100 125 150 175 200 250
|
Y |
Y |
Y |
|
C3800.060.FL |
38 * 60 |
60 * 85 |
Y |
Y |
Y |
|
|
C3800.075.FL |
38 * 75 |
60 * 100 |
Y |
Y |
Y |
|
|
C3800.0100.FL |
38 * 100 |
60 * 125 |
Y |
Y |
Y |
|
|
C3800.0125.FL |
38 * 125 |
60 * 150 |
Y |
Y |
Y |
|
|
C3800.0150.FL |
38 * 150 |
60 * 175 |
Y |
Y |
Y |
|
|
C3800.0175.FL |
38 * 175 |
60 * 200 |
Y |
Y |
Y |
|
|
C3800.0200.FL |
38 * 200 |
60 * 225 |
Y |
Y |
Y |
