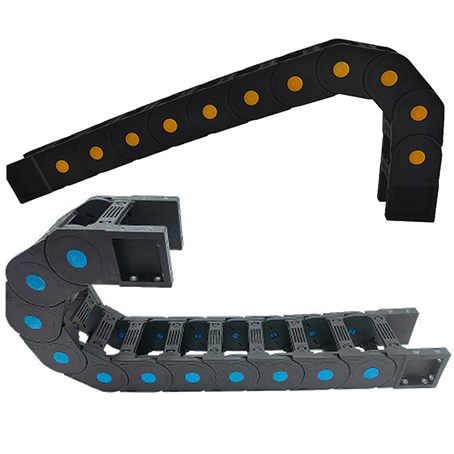

The 65mm high nylon drag chain is a large chamber industrial protective accessory with sufficient internal space to accommodate large-diameter cables, hydraulic oil pipes, and multiple sets of combined pipelines. It is widely used for pipeline protection in medium and large automation equipment. This specification of drag chain is divided into standard type and load-bearing type, with significant differences in structural performance between the two. They are respectively suitable for conventional working conditions and high-strength heavy-duty working conditions, and are suitable for various types of medium and large industrial production equipment.

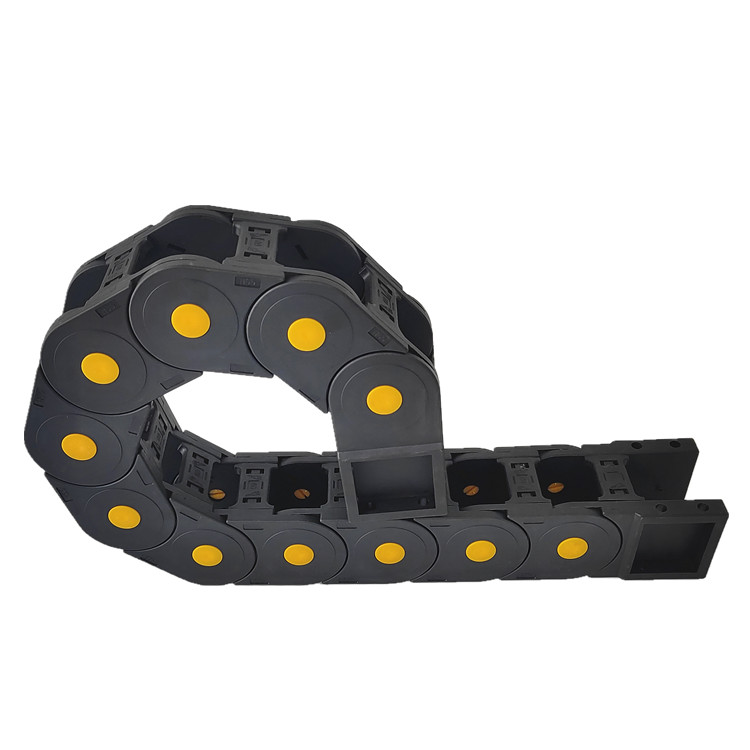

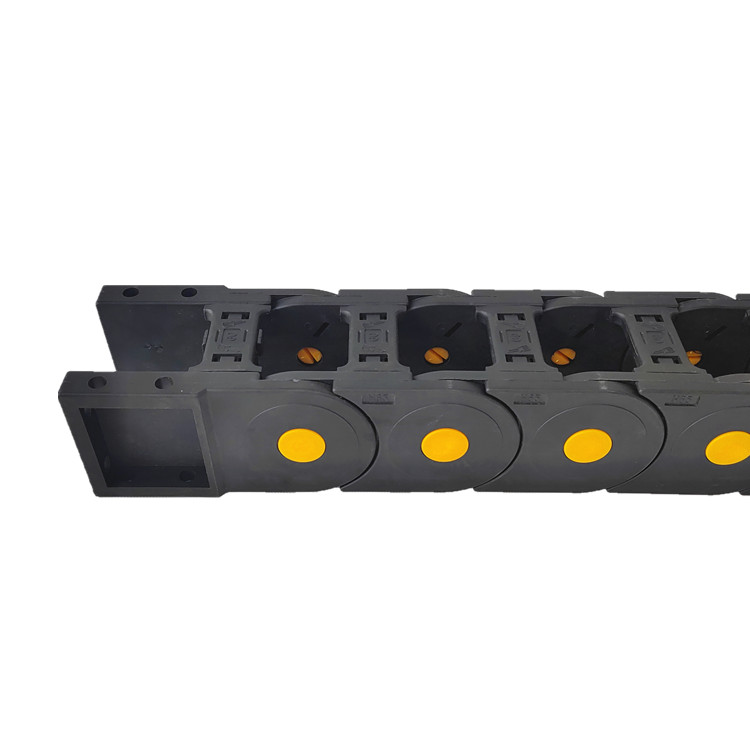

The standard 65mm nylon drag chain is made of high-quality native nylon injection molded, with light weight, low noise operation, flexibility and wear resistance, suitable for medium and light loads, long stroke smooth reciprocating motion scenarios. Mainly used in large CNC machine tools, packaging assembly lines, spraying equipment, medium-sized robotic arms, and general automation equipment, suitable for dust-free and lightly oily conventional factory environments. It can organize various pipelines in an orderly manner, avoiding pulling and wear, with simple disassembly and maintenance, stable operation, and extremely high practical cost-effectiveness.

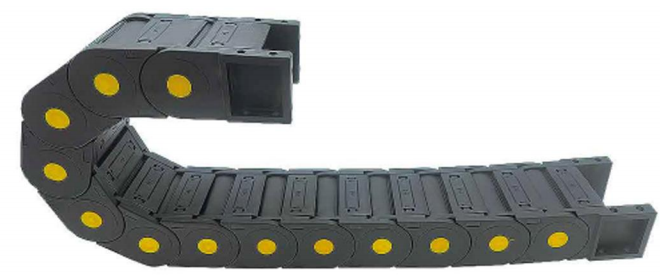

The load-bearing 65mm nylon drag chain is made of thickened modified high-strength nylon, combined with reinforced chain pieces and reinforced connection structures, greatly improving its tensile, compressive, deformation and wear resistance properties. Specially designed for heavy-duty, high-frequency, long-distance high-speed operation conditions, it is widely used in stone processing machinery, glass deep processing equipment, logistics three-dimensional storage and transportation equipment, large lifting machinery equipment, etc. It can adapt to harsh working environments with high dust and load, effectively resist pipeline self weight pressure and mechanical friction, prevent chain deformation and fracture, and ensure long-term continuous and stable operation of equipment.
|

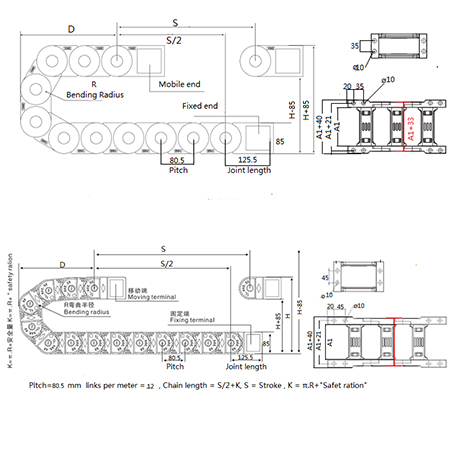

Model |
Inner Height * Inner Width |
Outer Height * Outer Width |
Bending Radius |
Bridge |
Fully Enclosed |
Semi Fully Enclosed |
|
|
Y6500.050.BK |
65*50 |
85*82 |
|
|
Y |
Y |
Y |
|
Y6500.060.BK |
65*60 |
85*92 |
75 |
100 |
Y |
Y |
Y |
|
Y6500.075.BK |
65*75 |
85*107 |
125 |
150 |
Y |
Y |
Y |
|
Y6500.090.BK |
65*90 |
85*122 |
175 |
200 |
Y |
Y |
Y |
|
Y6500.0100.BK |
65*100 |
85*132 |
250 |
300 |
Y |
Y |
Y |
|
Y6500.0117.BK |
65*117 |
85*150 |
|
|
Y |
-- |
-- |
|
Y6500.0125.BK |
65*125 |
85*157 |
|
|
Y |
-- |
-- |
|
Y6500.0130.BK |
65*130 |
85*162 |
|
|
Y |
Y |
Y |
|
Y6500.0150.BK |
65*150 |
85*182 |
75 |
100 |
Y |
Y |
Y |
|
Y6500.0175.BK |
65*175 |
85*207 |
125 |
150 |
Y |
Y |
Y |
|
Y6500.0200.BK |
65*200 |
85*232 |
175 |
200 |
Y |
Y |
Y |
|
Y6500.0250.BK |
65*250 |
85*282 |
250 |
300 |
Y |
-- |
-- |
|
Y6500.0300.BK |
65*300 |
85*332 |
|
|
Y |
-- |
-- |
