Inner Height 100 Series

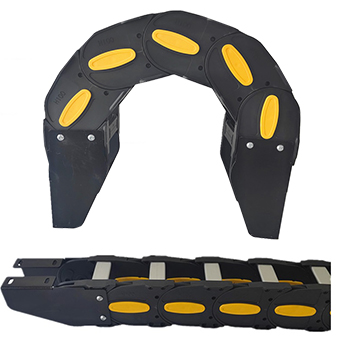

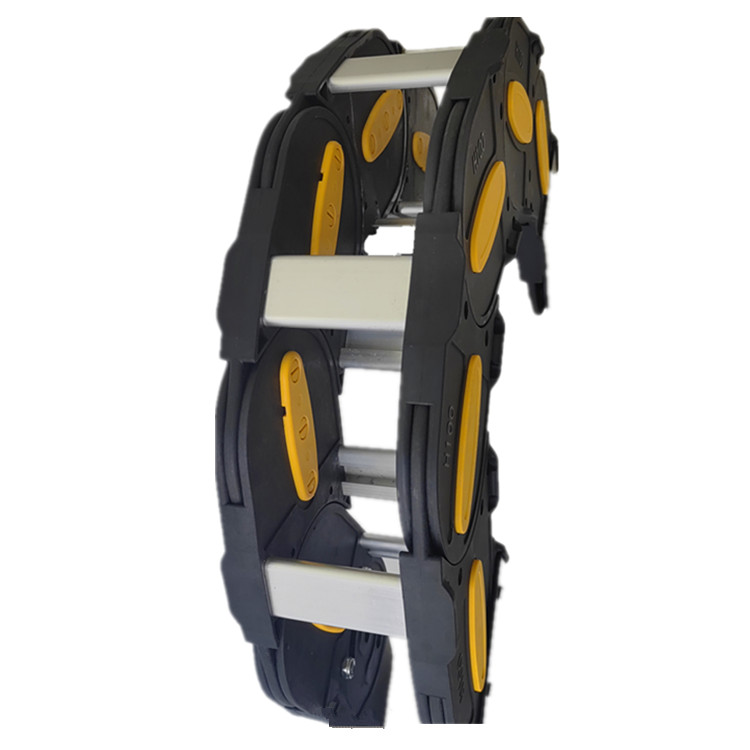

The 100mm high nylon load-bearing drag chain is equipped with aluminum alloy reinforced crossbeams, combining the dual material advantages of modified reinforced nylon and aviation grade aluminum alloy, balancing flexibility, wear resistance, and structural strength. The ultra large 100mm high internal cavity space can centrally store multiple large-diameter cables, high-pressure oil pipes, pneumatic air pipes, and sensing lines. The pipeline has a large capacity and is arranged neatly, perfectly adapting to the operating conditions of heavy-duty, long stroke, and high-frequency reciprocating industrial equipment. It is the core accessory for pipeline protection of medium and large automation equipment.

This drag chain is widely used in the field of precision machining, suitable for high-end CNC machine tools, large gantry machining centers, stone cutting and glass polishing equipment. Long term high-speed reciprocating operation of equipment can easily cause pipeline wear and pulling. This drag chain can provide comprehensive protection for pipeline cables, effectively resisting corrosion damage from workshop dust, cutting fluid, and oil stains. At the same time, the aluminum alloy crossbeam effectively solves the problems of sagging, shaking, and displacement of drag chains during long-distance operation, ensuring precision equipment machining accuracy and reducing the probability of equipment failure and shutdown.

Simultaneously adaptable to various industrial automation scenarios, including automotive welding, painting, assembly production lines, heavy-duty robotic arms, three-dimensional intelligent warehousing and conveying equipment, etc. It can adapt to complex working conditions such as high-frequency start stop and high-speed movement, with low noise and smooth operation, simple disassembly and assembly, and low maintenance costs in the later stage. In addition, it is also suitable for heavy equipment such as large injection molding machinery, lifting and conveying equipment, and engineering machinery. With excellent load-bearing, tensile, and vibration resistance, it can adapt to high-intensity working environments, effectively extend the overall service life of pipelines and equipment, and meet the pipeline protection needs of the vast majority of large and medium-sized industrial automation equipment.
